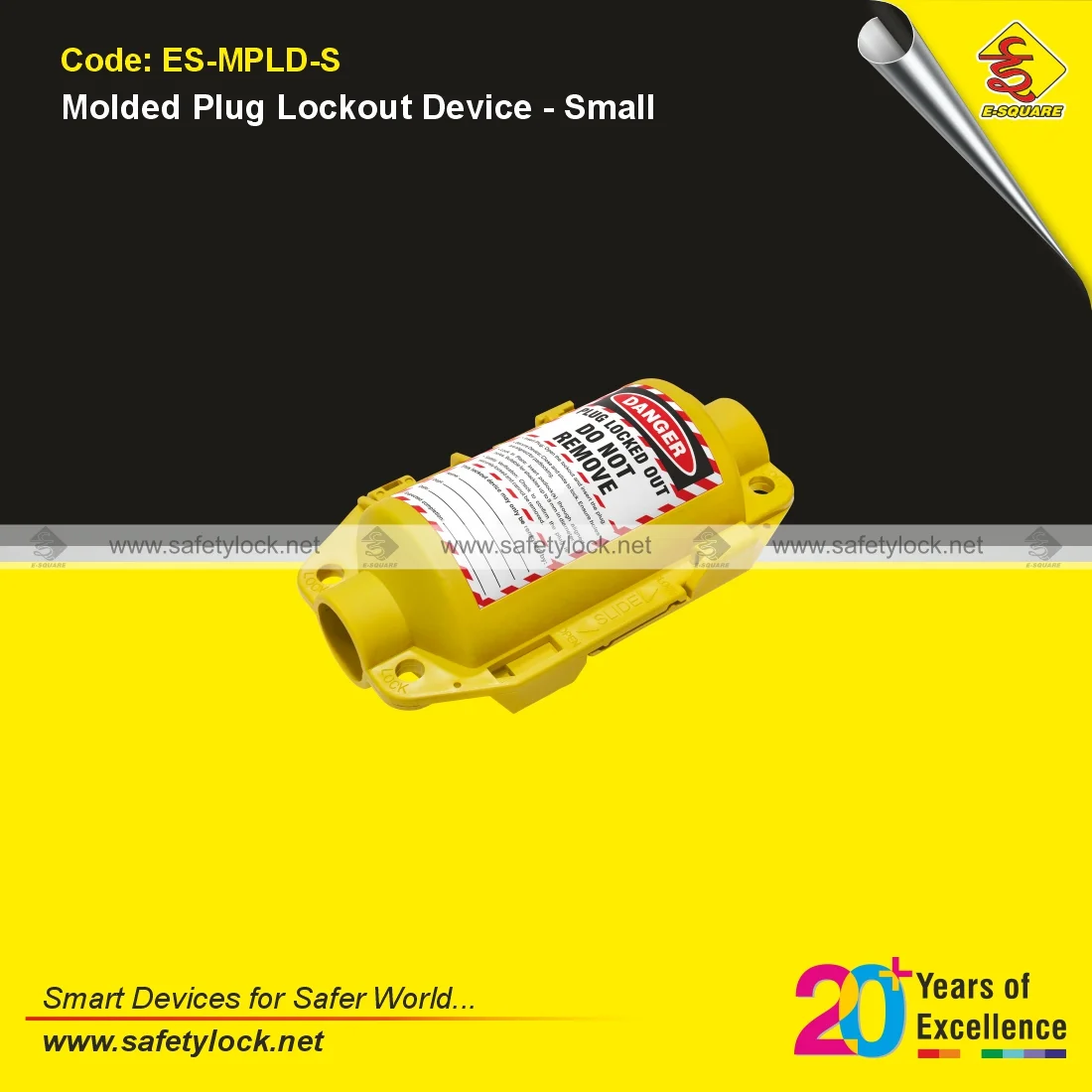

Molded Plug Lockout Device – Small

Code:ES-MPLD-S

Ensure optimal safety during machinery maintenance with the Molded Plug Lockout Device – Small. Crafted from sturdy polypropylene, this tool prevents unauthorized plug connections.

  • Accommodates plugs up to 70mm dia. x 120mm length.
  • Accepts up to 4 padlocks (max 9mm shackle dia.)
  • Ideal for 15A, 20A, 30A plugs and other small plugs.
Categories:

100000 in stock

Add To Quote

Product Description

  • Available in vibrant red and yellow for enhanced visibility.
  • Made from robust polypropylene material.
  • Temperature resistant from -19°C to 60°C.
  • Dimensions: 184mm L x 108mm W x 79mm H.
  • Cable diameter accommodation of up to 28mm.
  • Designed to prevent unauthorized plug connections in industrial environments.
  • Accommodates up to 4 padlocks for LOTO procedure.
  • Sliding Lock Mechanism facilitates a two-step secure locking.



How to use Molded Plug Lockout Device Small:

  1. Begin by opening the lockout device and position the plug inside.
  2. Close and slide the device to its secure position, ensuring the lock holes are synchronized.
  3. Apply one or more padlocks through the aligned lock holes.
  4. After completing the above steps, test that the locked-out plug cannot be pulled from the lockout device.
  5. This lockout device is designed for compliance with OSHA regulations when installed per the instructions above.
