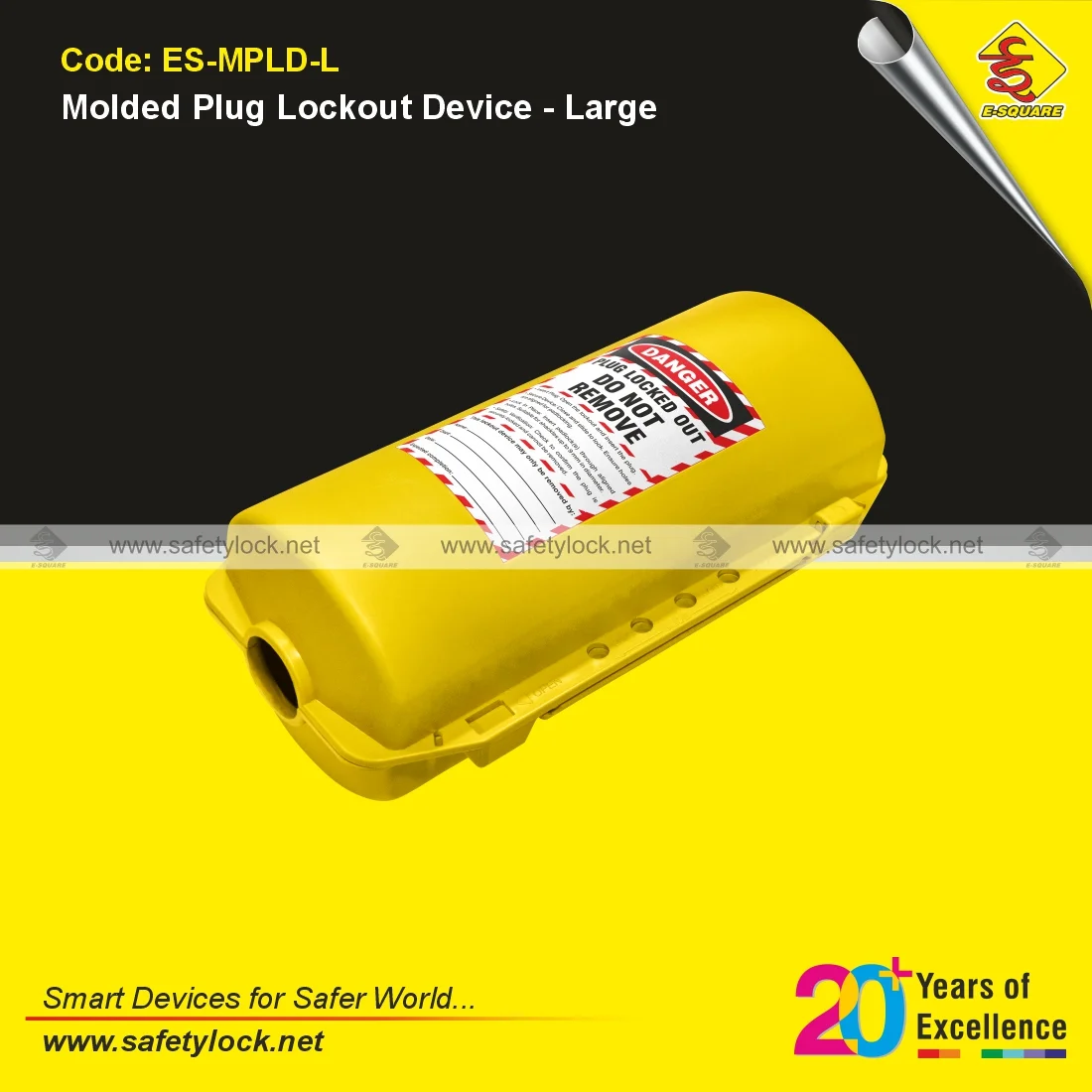

Molded Plug Lockout Device – Large

Code:ES-MPLD-L

Maximize safety precautions with the Molded Plug Lockout Device – Large. Built for bigger industrial plugs, this polypropylene tool prevents inadvertent plug connections.

  • Accommodates plugs up to 115mm dia. x 257mm length.
  • Accepts up to 4 padlocks (max 9mm shackle dia.).
  • Ideal for 30A, 50A, 60A plugs, and other large plugs.
Categories:

100000 in stock

Add To Quote

Product Description

  • Available in vibrant red and yellow for enhanced visibility.
  • Made from robust polypropylene material.
  • Temperature resistant from -19°C to 60°C.
  • Dimensions: 317mm L x 160mm W x 127mm H.
  • Cable diameter tolerance of up to 35mm.
  • Fits the majority of heavier industrial plug applications.
  • Prevents unauthorized or accidental plug connections.
  • Provides space for 4 padlocks for LOTO procedure.
  • Sliding Lock Mechanism facilitates a two-step secure locking.



How to use Molded Plug Lockout Device (Large):

  1. Begin by opening the lockout device and position the plug inside.
  2. Close and slide the device to its secure position, ensuring the lock holes are synchronized.
  3. Apply one or more padlocks through the aligned lock holes.
  4. After completing the above steps, test that the locked-out plug cannot be pulled from the lockout device.
  5. This lockout device is designed for compliance with OSHA regulations when installed per the instructions above.
