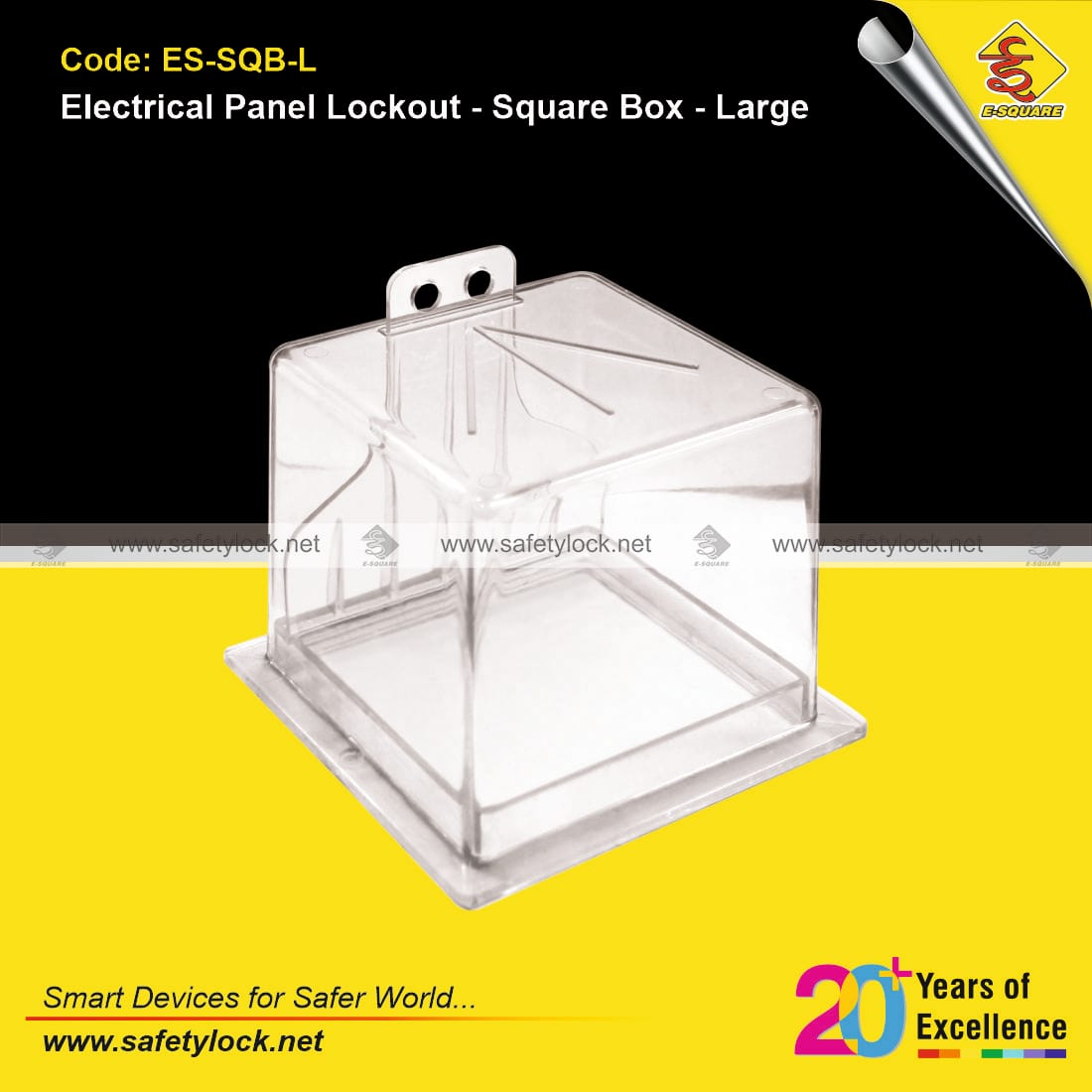

Electrical Panel Lockout – Square Box – Large

Code:ES-SQ-B-L

A specialized Square Switch Lockout designed for seamlessly securing electrical panel buttons and switches, with a unique two-stage operation, adaptable to switches with levers and different panel attachments.

  • Accepts multiple padlocks for secure locking.
  • Customizable: Can be cut from any side/direction for diverse panel configurations.
  • Durable and transparent built.
Categories:

100000 in stock

Add To Quote

Product Description

  • Designed to lockout electrical panel buttons and switches with no inbuilt lockout provisions.
  • Work in a 2-stage operation. The base plate should be attached directly onto the electrical panel over the top of the relevant switch using the super strong adhesive Backing / Riveting / Bolting.
  • When in place, the electrical plugs / switches / buttons can be isolated by placing the house unit over the top of base plate – hence preventing the access to the isolated switch. Then, they can be locked in place with a Lockout Padlock.
  • Square units are specially designed for the switches with levers.
  • Can be cut from any side / direction to suit the installation on different panels with varied wiring / attachments to the switches / conduits, levers protruding out or of different shapes.
  • Manufactured from sturdy special grade transparent material, each unit has been developed to completely enclose electrical plugs to prevent machines from being energized. The plug completely sits inside the unit.
  • If more than one unit on a single panel needs to be locked out – we recommend the use of our De Electric Squeezer lockout (ES-SMCL-YB) with the yellow cable being fed through the access holes of these electrical lockouts and locked at one location by multiple users.
