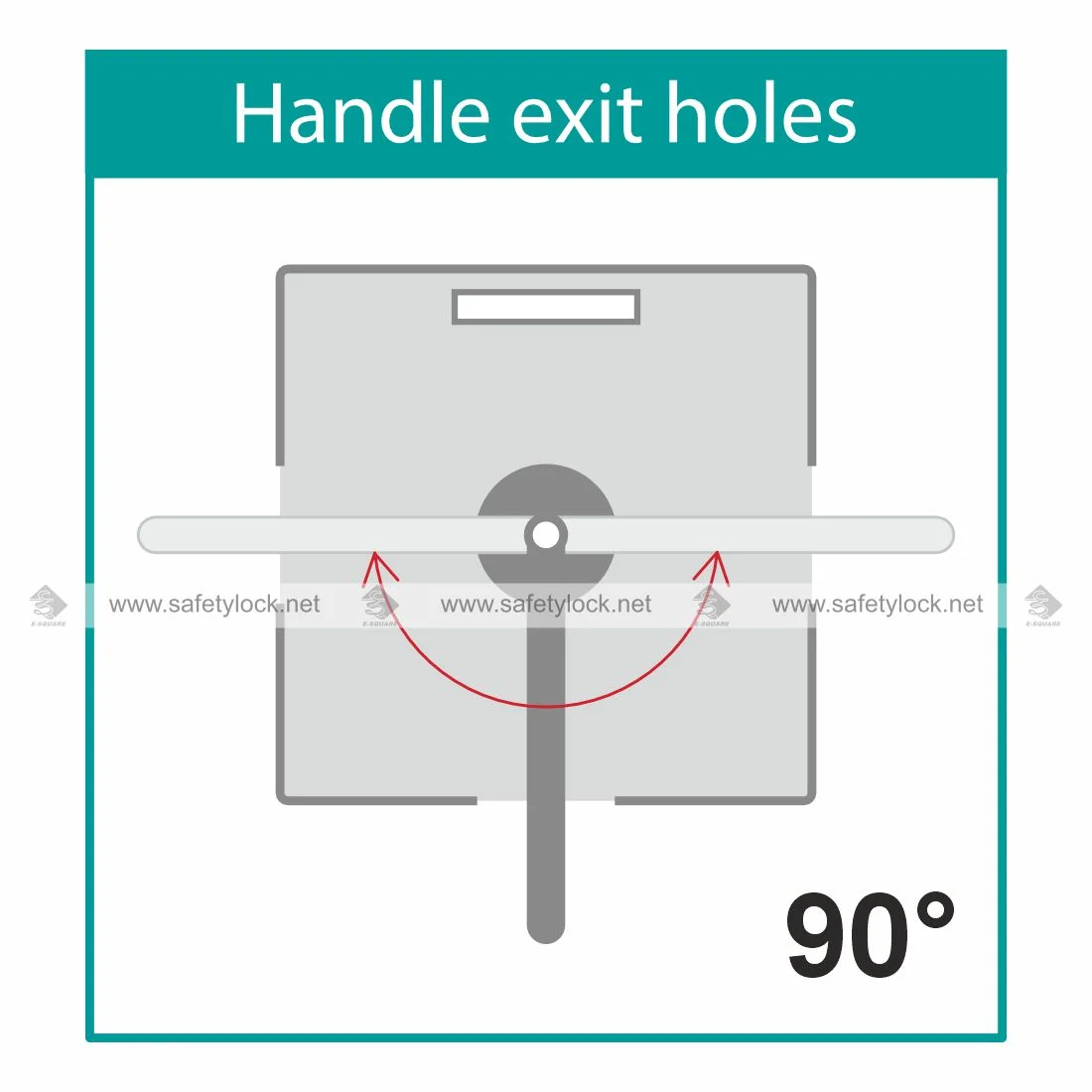

exit holes in electrical panel handle 90 degree

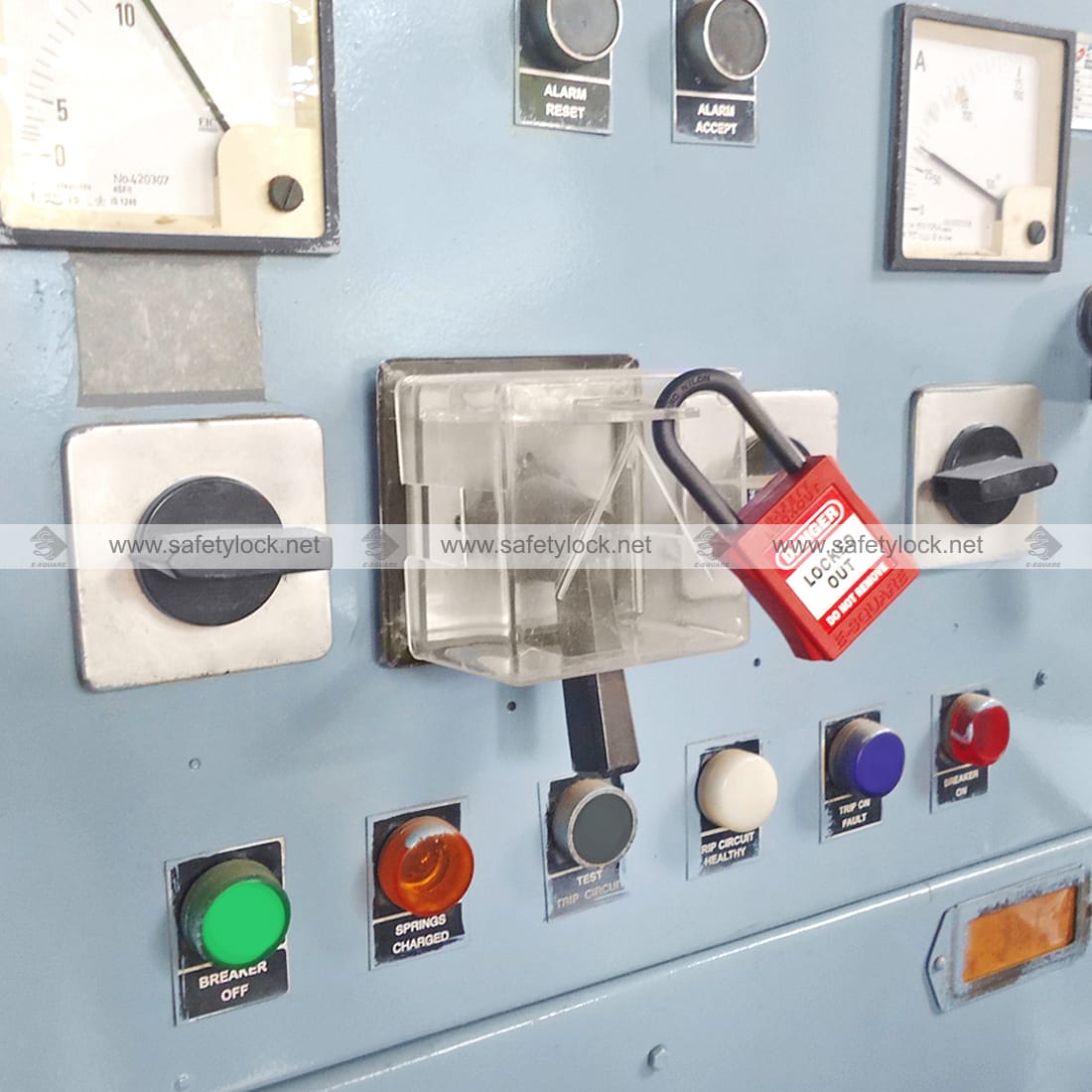

big size electrical panel lockout square box for levers

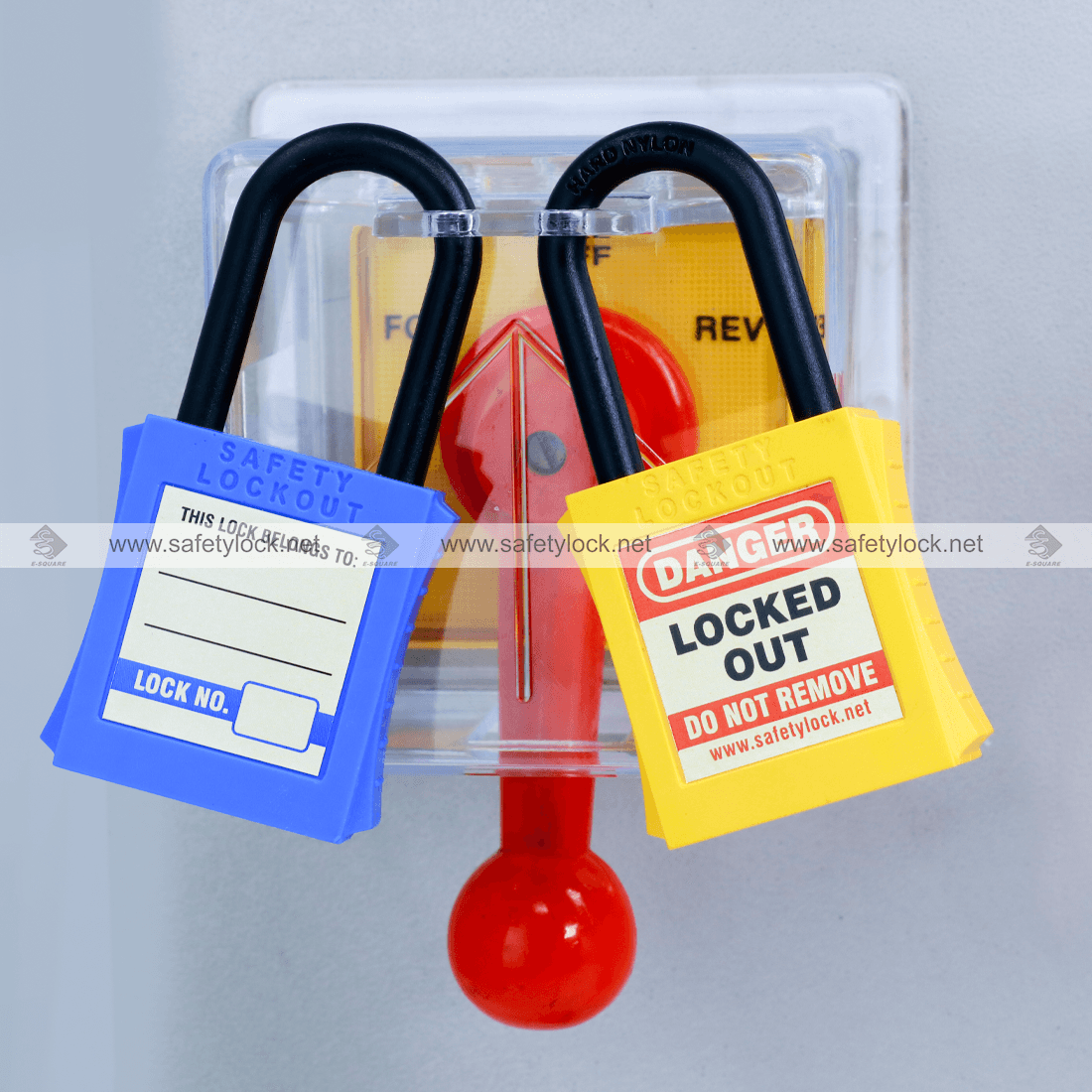

square switch lockout device installation on electrical panel
90 degree lever on electrical panel lockout tagout
square box type electrical panel lockout device
exit holes in electrical panel handle 90 degree
big size electrical panel lockout square box for levers
square switch lockout device installation on electrical panel
90 degree lever on electrical panel lockout tagout

Electrical Panel Lockout – Square Box – Big 90 Degree

Code:ES-SQ-B-90E

A specialized Square Switch Lockout designed for seamlessly securing electrical panel buttons and switches, with a unique two-stage operation, adaptable to switches with levers and different panel attachments.

  • Accepts multiple padlocks for secure locking.
  • Customizable: Can be cut from any side/direction for diverse panel configurations.
  • Durable and transparent built.
Categories:

100000 in stock

Add To Quote

Product Description

  • Designed to lockout electrical panel buttons and switches with no inbuilt lockout provisions.

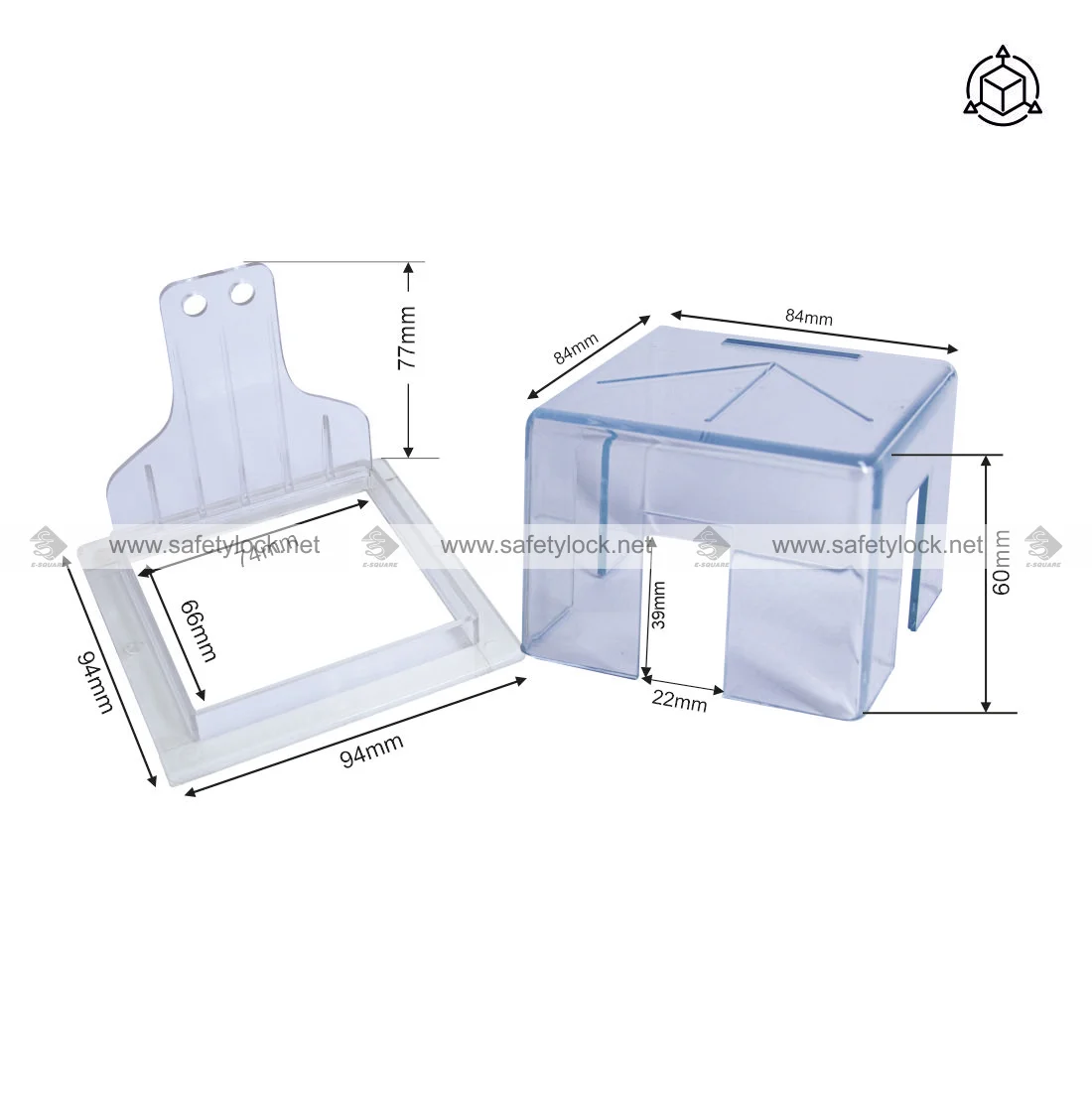

  • Work in a 2-stage operation. The base plate should be attached directly onto the electrical panel over the top of the relevant switch using the super strong adhesive Backing / Riveting / Bolting.
  • When in place, the electrical plugs / switches / buttons can be isolated by placing the house unit over the top of base plate – hence preventing the access to the isolated switch. Then, they can be locked in place with a Lockout Padlock.
  • Square units are specially designed for the switches with levers.
  • Can be cut from any side / direction to suit the installation on different panels with varied wiring / attachments to the switches / conduits, levers protruding out or of different shapes.
  • Manufactured from sturdy special grade transparent material, each unit has been developed to completely enclose electrical plugs to prevent machines from being energized. The plug completely sits inside the unit.
  • If more than one unit on a single panel needs to be locked out – we recommend the use of our De Electric Squeezer lockout (ES-SMCL-YB) with the yellow cable being fed through the access holes of these electrical lockouts and locked at one location by multiple users.
