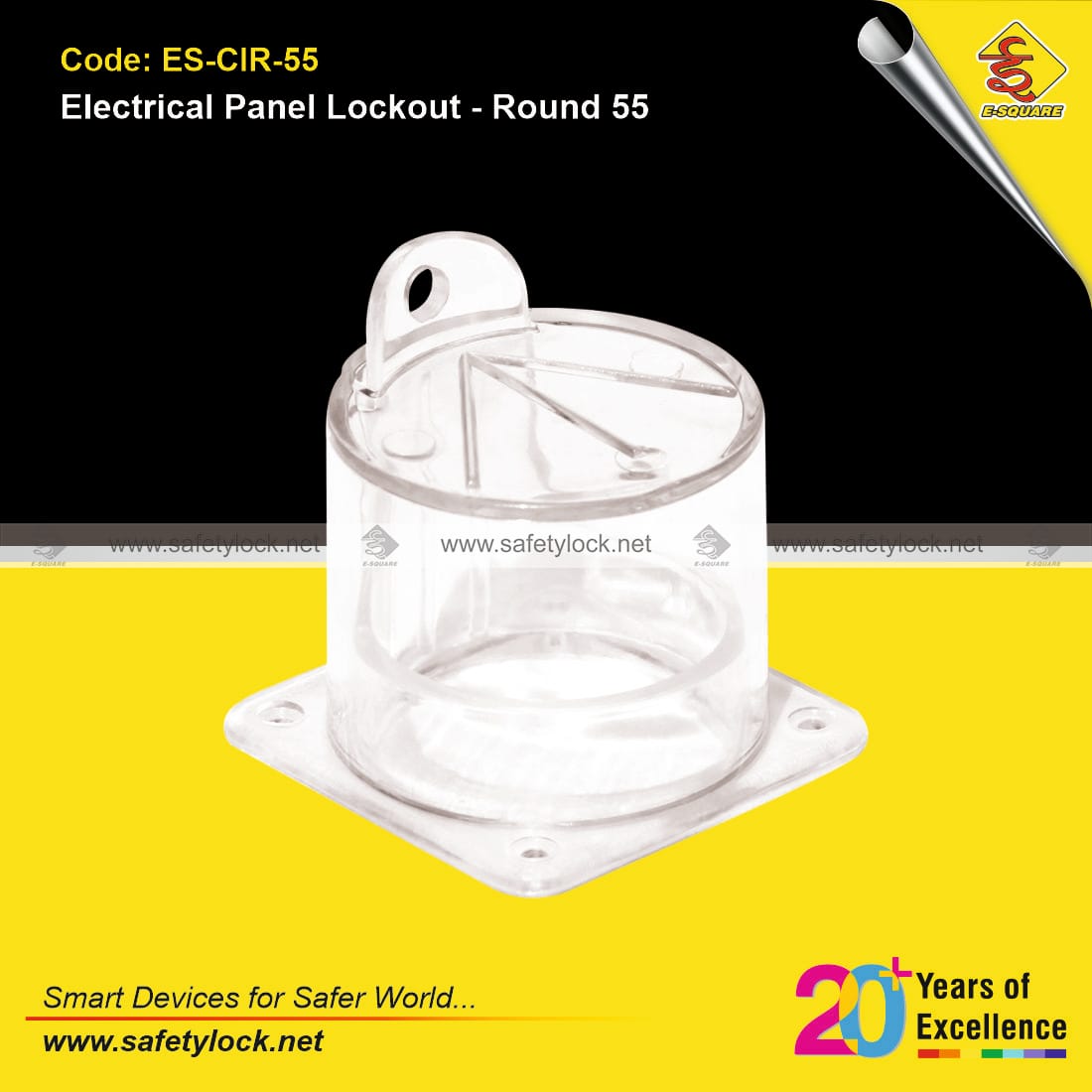

Electrical Panel Lockout – Circular Round 55

Code:ES-CIR-55

A lockout solution with 2-stage operation designed to securely isolate electrical panel buttons and switches with no built-in provisions.

  • Virtually transparent, allowing for visibility.
  • Accepts padlock for secure locking.

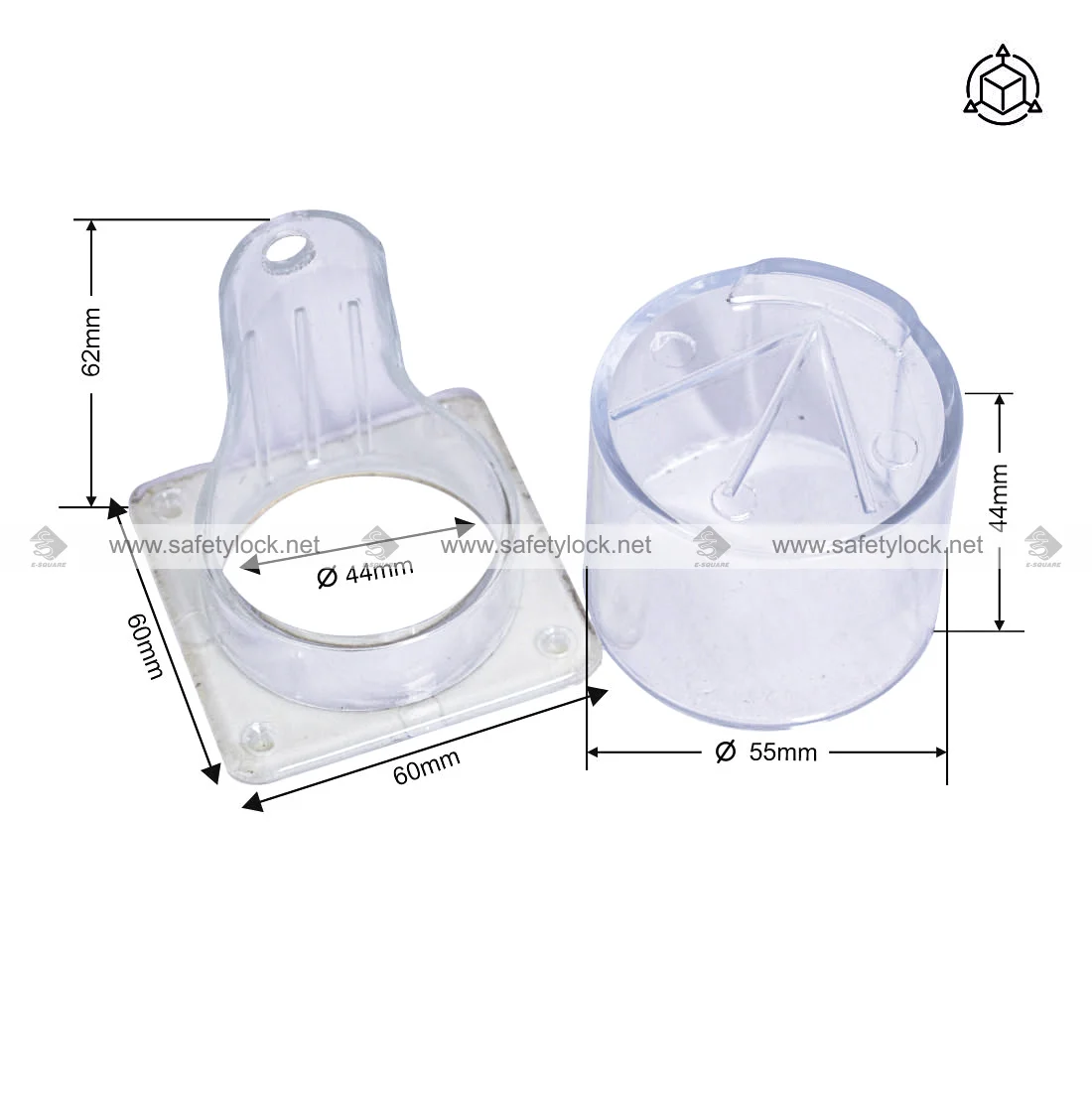

  • 55mm External Diameter, 50mm Internal Diameter.
  • Completely encases electrical buttons and switches.
Categories:

100000 in stock

Add To Quote

Product Description

  • Designed to lockout electrical panel buttons and switches with no inbuilt lockout provisions.
  • Work in a 2-stage operation. The base plate should be attached directly onto the electrical panel over the top of the relevant switch using the super strong adhesive Backing / Riveting / Bolting.
  • When in place, the electrical plugs / switches / buttons can be isolated by placing the house unit over the top of base plate – hence preventing the access to the isolated switch. Then, they can be locked in place with a Lockout Padlock.
  • Fit over most of the universal type push / mushroom panel buttons.
  • Manufactured from sturdy special grade transparent material, each unit has been developed to completely enclose electrical plugs to prevent machines from being energized. The plug completely sits inside the unit.
  • If more than one unit on a single panel needs to be locked out – we recommend the use of our De-Electric Squeezer lockout (ES-SMCL-YB) with the yellow cable being fed through the access holes of these electrical lockouts and locked at one location by multiple users.
