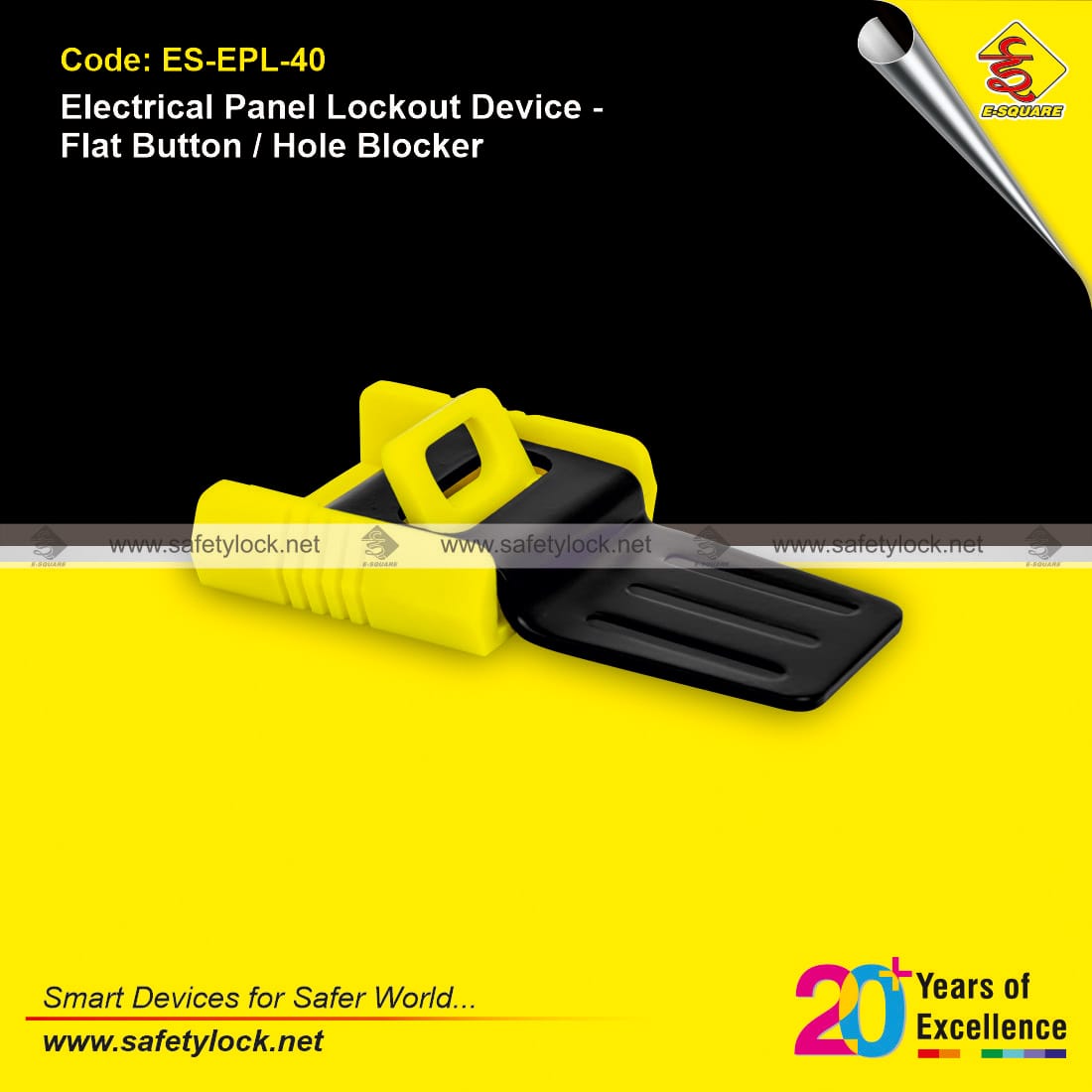

Electrical Panel Lockout Device – Flat Button / Hole Blocker

Product Description

• ES-EPL40: Controls cabinet door/electric handle hole/low-voltage drawer cabinet, etc.
• Electrical Panel Lockout Device – Flat Button / Hole Blocker is constructed from durable and lightweight insulated engineering plastic/nylon material.
• Features a black powder-coated metallic insert to prevent operation of switches, handles, levers, or insertion of handles in the rack-in/rack-out holes.
• The black powder-coated metallic insert improves wear resistance, rust resistance, enhances overall performance, and optimizes the appearance by reducing fingerprints.

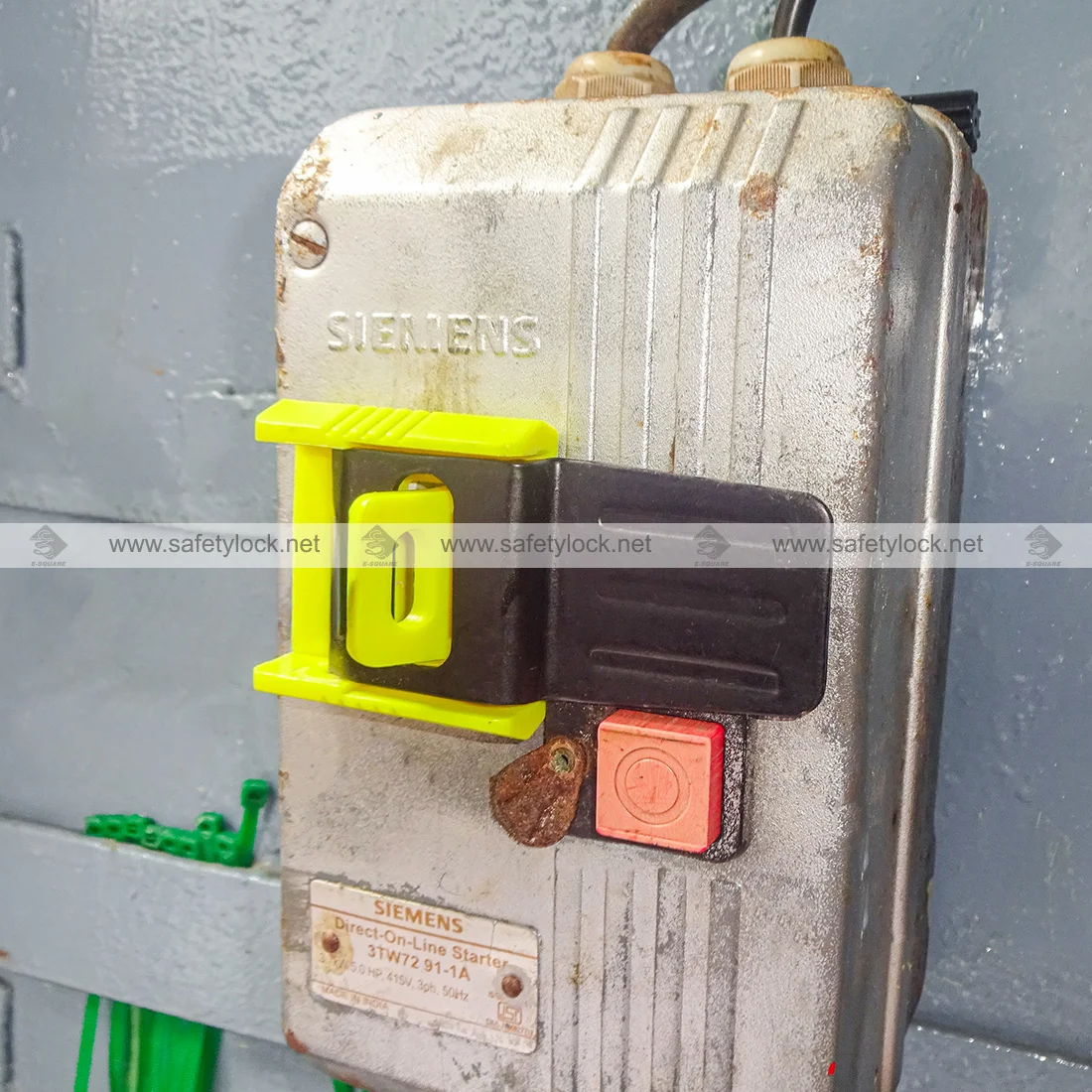

• Designed to be riveted directly to the electrical panel doors.
• Can also be screwed or adhered using double-sided tapes after cleaning the panel surface.

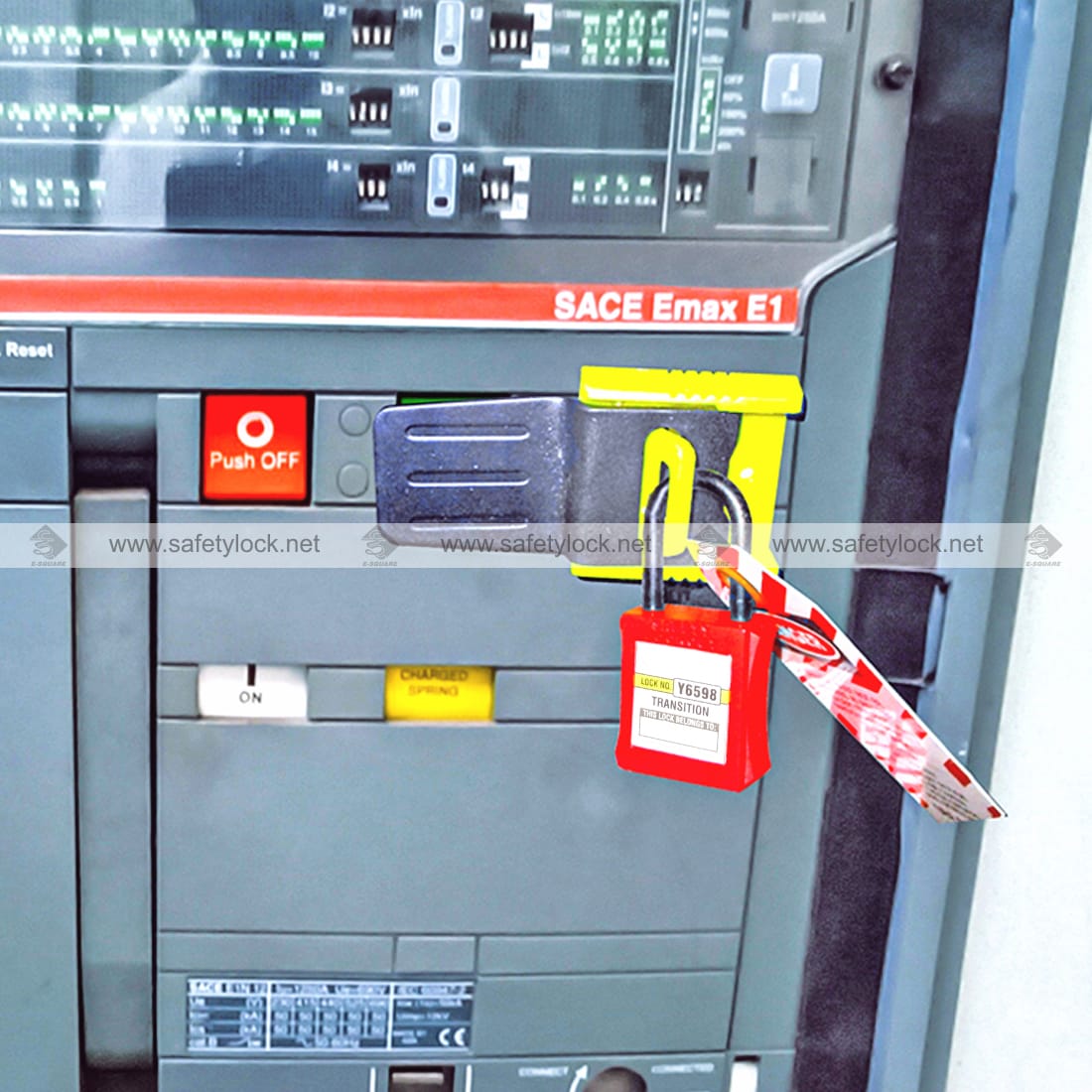

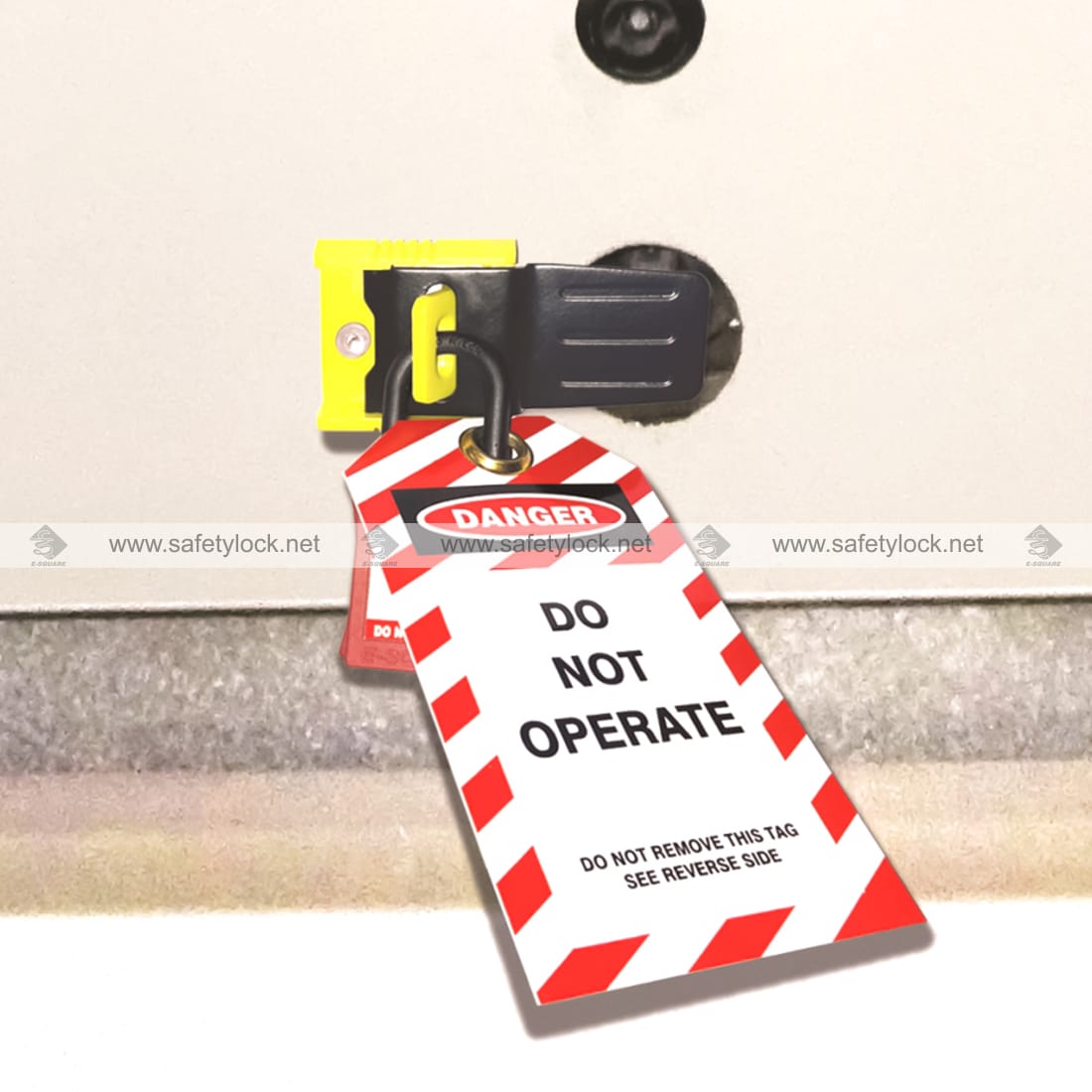

• Requires the use of a padlock and tag for proper lockout/tagout procedures.
• If multiple people need to lock and manage the same control point, a lockout hasp lock can be used.

Available in 5 different models:

ES-EPL40: Controls cabinet door/electric handle hole/low-voltage drawer cabinet, etc.

ES-EPL41: Controls push button switch/power distribution cabinet lock hole.

ES-EPL42: Controls rotary switch/transfer switch.

ES-EPL43: Controls switch handle/drawer cabinet transfer switch.

ES-EPL44: Controls knife switch/handle switch, etc.
